Description

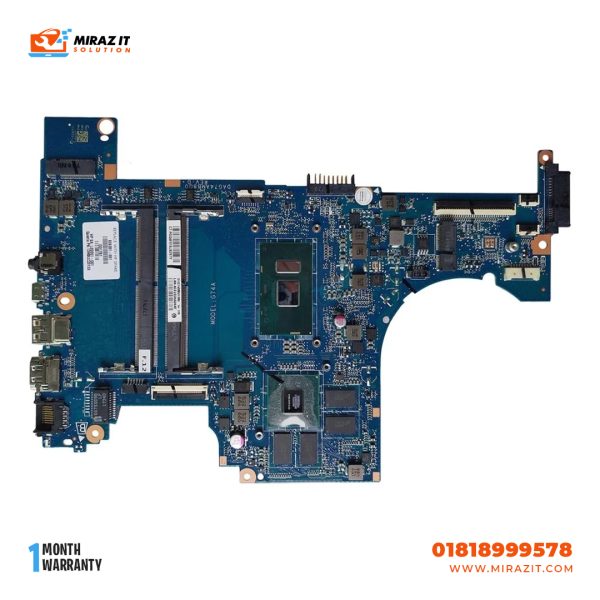

The Specification Of This HP Pavilion 15cc Laptop Motherboard
| Specification | Details |
|---|---|
| Model | HP Pavilion 15-cc Series Laptop Motherboard |
| Form Factor | Laptop Motherboard (Integrated) |
| Chipset | Intel HM175 / HM370 (depends on exact model variant) |
| Supported Processor | Intel 7th & 8th Generation Core i3 / i5 / i7 (Kaby Lake / Coffee Lake) |
| CPU Socket Type | FCBGA1356 (Soldered CPU, non-replaceable) |
| Graphics Support | Integrated Intel UHD / HD Graphics or NVIDIA GeForce MX130 (optional variant) |
| Memory Type | DDR4 SDRAM |
| Memory Slots | 2 x SO-DIMM Slots |
| Max Memory Capacity | Up to 16GB (2 x 8GB modules) |
| Storage Interface | 2.5″ SATA HDD / SSD, and M.2 SSD (SATA/PCIe NVMe) |
| Audio Chipset | Integrated Realtek ALC295 |
| LAN | Integrated 10/100/1000 Mbps Ethernet (optional variant) |
| Wireless Support | M.2 2230 WiFi & Bluetooth Module Slot |
| Expansion Slots | 1 x M.2 for WiFi, 1 x M.2 for SSD |
| Ports (onboard connectors) | DC Power Jack, USB Ports, HDMI, RJ-45, Audio Combo Jack, SD Card Reader |
| BIOS Type | UEFI/Legacy |
| Cooling Support | 1 x CPU Fan Connector, Heat Sink Assembly |
| Battery Support | 3-cell / 4-cell Lithium-Ion |
| Warranty | Based on supplier or reseller policy |
