Specification Of The HP 8570p Motherboard
| Specification | Details |
|---|---|
| Model Compatibility | HP EliteBook 8570p |
| Form Factor | Proprietary HP Laptop Motherboard (15.6″ Business-Class) |
| Supported Processor | Intel Core i5 / i7 (3rd Gen – Ivy Bridge) |
| CPU Socket Type | Socket G2 / rPGA988B – Upgradeable (e.g., i7-3520M, i7-3630QM) |
| Chipset | Intel QM77 Express Chipset |
| Graphics Support | Intel HD Graphics 4000 (Integrated) |
| Optional AMD Radeon HD 7570M / 7690M (Discrete GPU variants) | |
| Memory Type | DDR3/DDR3L SO-DIMM (1.5V or 1.35V) |
| Memory Slots | 2 x SO-DIMM |
| Max Memory Supported | Up to 16 GB DDR3-1600 MHz |
| Storage Interface | 1 x 2.5″ SATA III HDD/SSD |
| Upgrade bay for optical drive or secondary storage (caddy supported) | |
| mSATA slot (in WWAN socket – model-dependent) | |
| Wireless Support | 1 x Half-size Mini PCIe WLAN |
| 1 x Full-size Mini PCIe (for WWAN/mSATA SSD) | |
| Audio Chipset | IDT 92HD81B1X or similar |
| BIOS Type | UEFI BIOS with HP Sure Start |
| Ports on Motherboard | USB 3.0, USB 2.0, DisplayPort, VGA, eSATA/USB combo, RJ-45, Audio, Docking |
| Security Features | TPM 1.2, Smart Card Reader, Fingerprint Reader (optional), BIOS password |
| Power Connector | Standard HP 180W Smart AC Adapter jack |
| Cooling System Support | Dual heat pipe + fan (connected to CPU and GPU if present) |

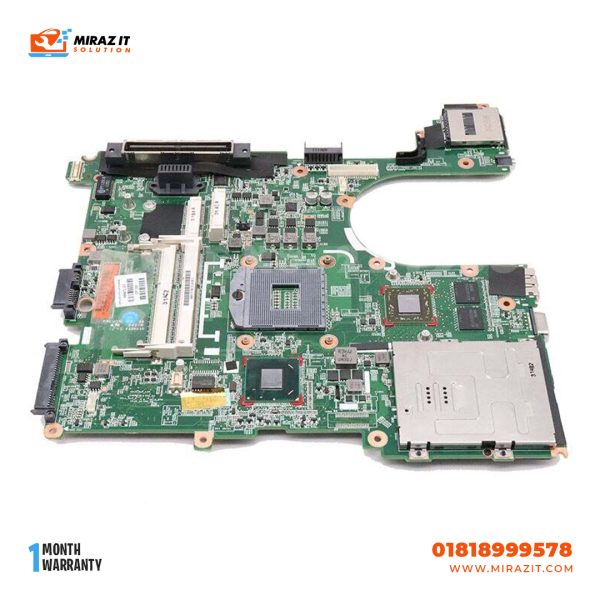

HP 8570p Motherboard
𝐓𝐡𝐞 𝐇𝐏 𝟖𝟓𝟕𝟎𝐩 𝐌𝐨𝐭𝐡𝐞𝐫𝐛𝐨𝐚𝐫𝐝 𝐢𝐬 𝐭𝐡𝐞 𝐦𝐚𝐢𝐧 𝐜𝐨𝐦𝐩𝐨𝐧𝐞𝐧𝐭 𝐭𝐡𝐚𝐭 𝐩𝐨𝐰𝐞𝐫𝐬 𝐭𝐡𝐞 𝐄𝐥𝐢𝐭𝐞𝐁𝐨𝐨𝐤 𝟖𝟓𝟕𝟎𝐩’𝐬 𝐫𝐞𝐥𝐢𝐚𝐛𝐢𝐥𝐢𝐭𝐲 𝐚𝐧𝐝 𝐩𝐞𝐫𝐟𝐨𝐫𝐦𝐚𝐧𝐜𝐞. 𝐓𝐡𝐢𝐬 𝐥𝐚𝐩𝐭𝐨𝐩 𝐢𝐬 𝐡𝐢𝐠𝐡𝐥𝐲 𝐫𝐞𝐧𝐨𝐰𝐧𝐞𝐝 𝐟𝐨𝐫 𝐢𝐭𝐬 𝐫𝐨𝐛𝐮𝐬𝐭𝐧𝐞𝐬𝐬 𝐚𝐧𝐝 𝐛𝐮𝐬𝐢𝐧𝐞𝐬𝐬-𝐫𝐞𝐚𝐝𝐲 𝐝𝐞𝐬𝐢𝐠𝐧. 𝐓𝐡𝐢𝐬 𝐦𝐨𝐭𝐡𝐞𝐫𝐛𝐨𝐚𝐫𝐝 𝐢𝐬 𝐞𝐬𝐬𝐞𝐧𝐭𝐢𝐚𝐥 𝐭𝐨 𝐦𝐚𝐤𝐢𝐧𝐠 𝐬𝐮𝐫𝐞 𝐭𝐡𝐞 𝐬𝐲𝐬𝐭𝐞𝐦 𝐟𝐮𝐧𝐜𝐭𝐢𝐨𝐧𝐬 𝐩𝐫𝐨𝐩𝐞𝐫𝐥𝐲 𝐞𝐯𝐞𝐫𝐲 𝐝𝐚𝐲 𝐬𝐢𝐧𝐜𝐞 𝐢𝐭 𝐢𝐬 𝐭𝐡𝐞 𝐩𝐫𝐢𝐦𝐚𝐫𝐲 𝐜𝐢𝐫𝐜𝐮𝐢𝐭 𝐭𝐡𝐚𝐭 𝐥𝐢𝐧𝐤𝐬 𝐚𝐧𝐝 𝐩𝐨𝐰𝐞𝐫𝐬 𝐚𝐥𝐥 𝐨𝐟 𝐭𝐡𝐞 𝐢𝐦𝐩𝐨𝐫𝐭𝐚𝐧𝐭 𝐩𝐚𝐫𝐭𝐬.
𝐈𝐧 𝐦𝐚𝐧𝐲 𝐜𝐚𝐬𝐞𝐬, 𝐭𝐡𝐞 𝐦𝐨𝐭𝐡𝐞𝐫𝐛𝐨𝐚𝐫𝐝 𝐢𝐬 𝐭𝐡𝐞 𝐜𝐨𝐦𝐩𝐨𝐧𝐞𝐧𝐭 𝐭𝐡𝐚𝐭 𝐫𝐞𝐪𝐮𝐢𝐫𝐞𝐬 𝐫𝐞𝐩𝐚𝐢𝐫 𝐰𝐡𝐞𝐧 𝐚 𝐥𝐚𝐩𝐭𝐨𝐩 𝐛𝐞𝐠𝐢𝐧𝐬 𝐭𝐨 𝐞𝐱𝐡𝐢𝐛𝐢𝐭 𝐭𝐞𝐜𝐡𝐧𝐢𝐜𝐚𝐥 𝐛𝐫𝐞𝐚𝐤𝐝𝐨𝐰𝐧. 𝐂𝐡𝐚𝐧𝐠𝐢𝐧𝐠 𝐢𝐭 𝐜𝐚𝐧 𝐫𝐞𝐯𝐢𝐭𝐚𝐥𝐢𝐳𝐞 𝐚 𝐠𝐚𝐝𝐠𝐞𝐭 𝐭𝐡𝐚𝐭 𝐬𝐭𝐢𝐥𝐥 𝐡𝐚𝐬 𝐚 𝐥𝐨𝐭 𝐨𝐟 𝐬𝐭𝐫𝐞𝐧𝐠𝐭𝐡 𝐚𝐧𝐝 𝐮𝐬𝐞𝐟𝐮𝐥𝐧𝐞𝐬𝐬. 𝐁𝐞𝐜𝐚𝐮𝐬𝐞 𝐨𝐟 𝐢𝐭𝐬 𝐜𝐚𝐩𝐚𝐜𝐢𝐭𝐲 𝐭𝐨 𝐫𝐞𝐬𝐭𝐨𝐫𝐞 𝐬𝐭𝐚𝐛𝐢𝐥𝐢𝐭𝐲 𝐚𝐧𝐝 𝐩𝐞𝐫𝐟𝐨𝐫𝐦𝐚𝐧𝐜𝐞, 𝐭𝐡𝐞 𝐇𝐏 𝟖𝟓𝟕𝟎𝐩 𝐦𝐨𝐭𝐡𝐞𝐫𝐛𝐨𝐚𝐫𝐝 𝐢𝐬 𝐚 𝐫𝐞𝐥𝐢𝐚𝐛𝐥𝐞 𝐨𝐩𝐭𝐢𝐨𝐧 𝐟𝐨𝐫 𝐫𝐞𝐩𝐚𝐢𝐫𝐬, 𝐮𝐩𝐠𝐫𝐚𝐝𝐞𝐬, 𝐚𝐧𝐝 𝐫𝐞𝐟𝐮𝐫𝐛𝐢𝐬𝐡𝐦𝐞𝐧𝐭𝐬.
𝐓𝐡𝐢𝐬 𝐇𝐏 𝟖𝟓𝟕𝟎𝐩 𝐌𝐨𝐭𝐡𝐞𝐫𝐛𝐨𝐚𝐫𝐝 𝐩𝐫𝐨𝐯𝐢𝐝𝐞𝐬 𝐚 𝐝𝐞𝐩𝐞𝐧𝐝𝐚𝐛𝐥𝐞 𝐰𝐚𝐲 𝐟𝐨𝐫 𝐭𝐞𝐜𝐡𝐧𝐢𝐜𝐢𝐚𝐧𝐬, 𝐈𝐓 𝐝𝐞𝐩𝐚𝐫𝐭𝐦𝐞𝐧𝐭𝐬, 𝐨𝐫 𝐢𝐧𝐝𝐢𝐯𝐢𝐝𝐮𝐚𝐥𝐬 𝐰𝐡𝐨 𝐦𝐚𝐢𝐧𝐭𝐚𝐢𝐧 𝐭𝐡𝐞𝐢𝐫 𝐨𝐰𝐧 𝐞𝐪𝐮𝐢𝐩𝐦𝐞𝐧𝐭 𝐭𝐨 𝐢𝐧𝐜𝐫𝐞𝐚𝐬𝐞 𝐭𝐡𝐞 𝐟𝐮𝐧𝐜𝐭𝐢𝐨𝐧𝐚𝐥𝐢𝐭𝐲 𝐨𝐟 𝐚 𝐭𝐞𝐬𝐭𝐞𝐝 𝐬𝐲𝐬𝐭𝐞𝐦. 𝐈𝐭 𝐞𝐧𝐚𝐛𝐥𝐞𝐬 𝐭𝐡𝐞 𝐇𝐏 𝟖𝟓𝟕𝟎𝐩 𝐭𝐨 𝐫𝐞𝐦𝐚𝐢𝐧 𝐚 𝐫𝐞𝐥𝐢𝐚𝐛𝐥𝐞 𝐰𝐨𝐫𝐤 𝐩𝐚𝐫𝐭𝐧𝐞𝐫 𝐟𝐚𝐫 𝐚𝐟𝐭𝐞𝐫 𝐢𝐭𝐬 𝐢𝐧𝐢𝐭𝐢𝐚𝐥 𝐥𝐢𝐟𝐞𝐬𝐩𝐚𝐧 𝐭𝐡𝐚𝐧𝐤𝐬 𝐭𝐨 𝐢𝐭𝐬 𝐠𝐫𝐞𝐚𝐭 𝐜𝐨𝐦𝐩𝐚𝐭𝐢𝐛𝐢𝐥𝐢𝐭𝐲 𝐚𝐧𝐝 𝐠𝐨𝐨𝐝 𝐫𝐞𝐩𝐮𝐭𝐚𝐭𝐢𝐨𝐧.
𝐎𝐮𝐫 𝐬𝐭𝐨𝐫𝐞 𝐜𝐚𝐧 𝐛𝐞 𝐟𝐨𝐮𝐧𝐝 𝐢𝐧 𝐄𝐂𝐒 𝐂𝐨𝐦𝐩𝐮𝐭𝐞𝐫 𝐂𝐢𝐭𝐲 𝐌𝐮𝐥𝐭𝐢𝐩𝐥𝐚𝐧 𝐂𝐞𝐧𝐭𝐞𝐫, 𝐍𝐞𝐰 𝐄𝐥𝐞𝐩𝐡𝐚𝐧𝐭 𝐑𝐨𝐚𝐝, 𝐃𝐡𝐚𝐤𝐚 -𝟏𝟐𝟎𝟓, 𝐋𝐞𝐯𝐞𝐥𝐬 𝟕 𝐚𝐧𝐝 𝟖𝟐𝟕, 𝐋𝐞𝐯𝐞𝐥𝐬 𝟕 𝐚𝐧𝐝 𝟕𝟔𝟎.
𝑶𝒖𝒓 𝑵𝒖𝒎𝒃𝒆𝒓 -𝟎𝟏𝟖𝟏𝟔𝟔𝟎𝟓𝟗𝟔𝟑
