Description

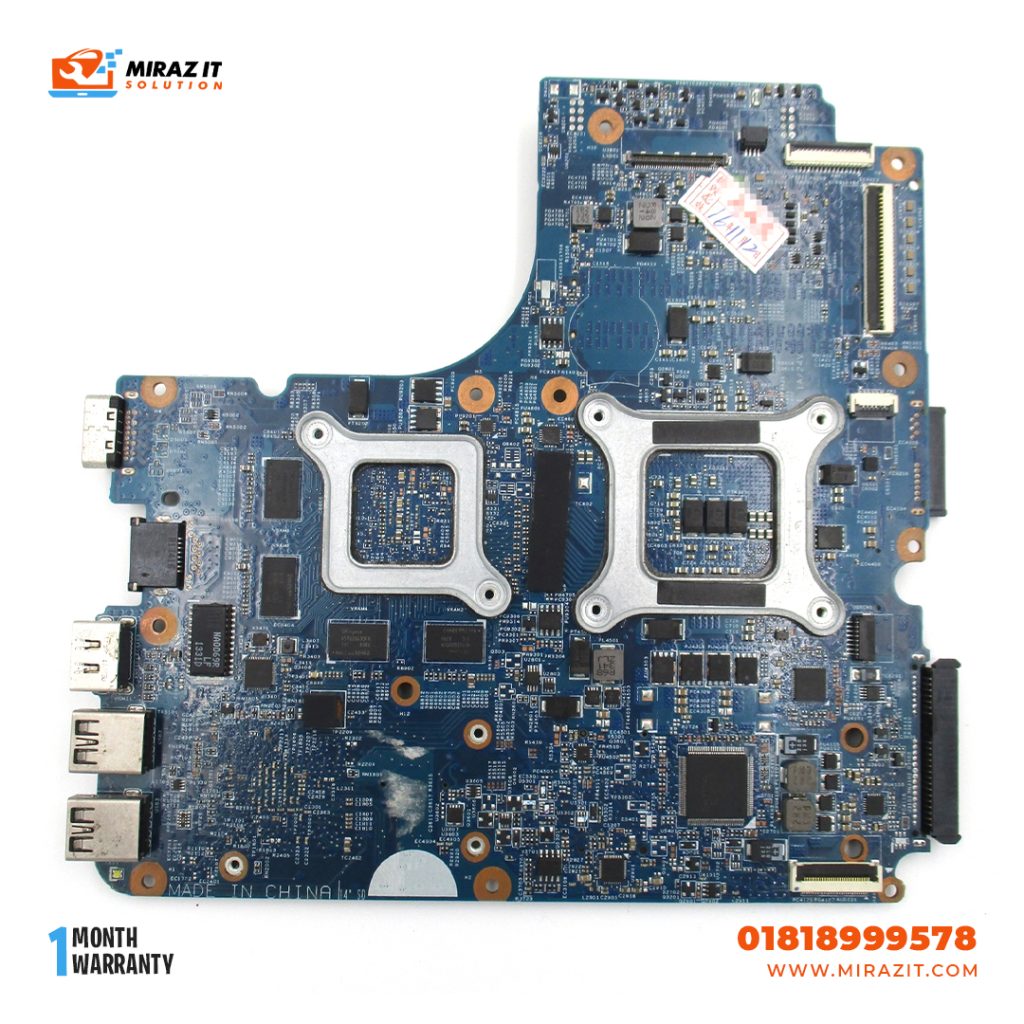

The Specification Of This HP 4540s Motherboard
| Category | Specification |
|---|---|
| Brand | HP |
| Model | HP ProBook 4540s Motherboard |
| Form Factor | Proprietary (Designed for HP ProBook 4540s Laptop) |
| Processor Support | Intel 2nd & 3rd Generation Core i3, i5, i7 (Sandy Bridge & Ivy Bridge, U-series CPUs) |
| Chipset | Intel HM76 |
| Memory Type | DDR3 (1333MHz / 1600MHz) |
| Memory Slots | 2 x SO-DIMM slots |
| Maximum RAM | Up to 16GB (8GB x 2) |
| Graphics Support | – Integrated Intel HD Graphics 3000/4000- Optional AMD Radeon HD 7650M (2GB DDR3) |
| Storage Interface | 1 x SATA 6.0Gb/s port for 2.5” HDD/SSD |
| M.2 Slot | No |
| Wi-Fi Slot | 1 x Half-size Mini PCIe slot |
| Audio Chipset | Integrated Realtek High Definition Audio |
| USB Ports (on board) | Supports system USB 2.0 & 3.0 ports via headers |
| HDMI Port | Via I/O back panel (connected through motherboard) |
| LAN Port | RJ-45 Ethernet (connected through system I/O port) |
| DC Power Jack | On-board connector |
| Cooling Support | 1 x CPU fan connector |
| BIOS Type | UEFI |
| Battery Connector | 1 x CMOS battery connector |
