Description

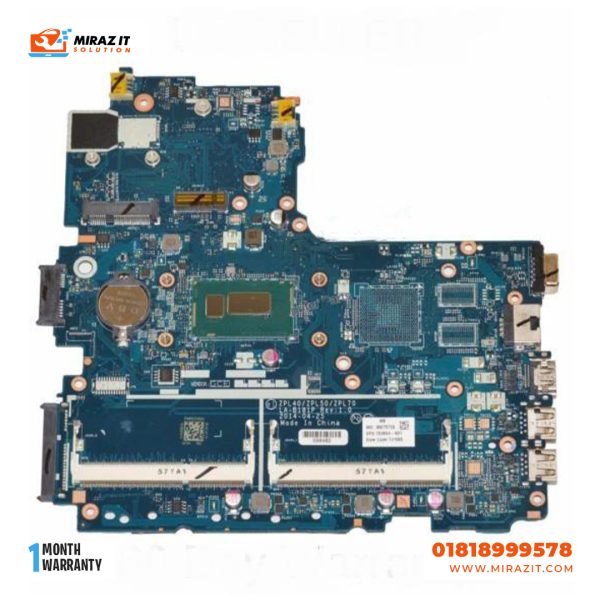

The Specification Of This HP 450-g2 Motherboard
| Category | Specification |
|---|---|
| Brand | HP |
| Model | HP ProBook 450 G2 Motherboard |
| Form Factor | Proprietary (Designed for HP ProBook 450 G2 Laptop) |
| Processor Support | Intel 4th & 5th Generation Core i3, i5, i7 (Haswell/Broadwell, U-series CPUs) |
| Chipset | Intel HM87 |
| Memory Type | DDR3L (1600MHz) |
| Memory Slots | 2 x SO-DIMM slots |
| Maximum RAM | Up to 16GB (8GB x 2) |
| Graphics Support | – Integrated Intel HD Graphics 4400/5500- Optional AMD Radeon R5 M255 (2GB DDR3) |
| Storage Interface | 1 x SATA 6.0Gb/s port for 2.5” HDD/SSD |
| M.2 Slot | No |
| Wi-Fi Slot | 1 x Half-size Mini PCIe slot |
| Audio Chipset | Integrated Realtek High Definition Audio |
| USB Ports (on board) | Supports system USB 2.0 & 3.0 ports via headers |
| HDMI Port | Via I/O back panel (connected through motherboard) |
| LAN Port | RJ-45 Ethernet (connected through system I/O port) |
| DC Power Jack | On-board connector |
| Cooling Support | 1 x CPU fan connector |
| BIOS Type | UEFI |
| Battery Connector | 1 x CMOS battery connector |
| Operating System Support | Windows 7, Windows 8.1, Windows 10 (64-bit) |
