Description
The Specification Table Of This DELL n5110 Motherboard
| Component | Specification |
|---|---|
| Motherboard Model | Dell Inspiron 15R N5110 |
| Chipset | Intel HM67 Express |
| CPU Socket | rPGA 989 |
| Processor Support | Intel 2nd Gen Core i3/i5/i7 (Sandy Bridge) |
| Memory Type | DDR3 SDRAM |
| Memory Slots | 2 x SO-DIMM slots |
| Max Memory Capacity | Up to 8 GB DDR3 1333 MHz |
| Graphics Options | Integrated Intel HD Graphics 3000 or Discrete NVIDIA GeForce GT 525M |
| Storage Interface | SATA for HDD/SSD |
| Optical Drive Interface | SATA |
| Expansion Slots | 1 x Mini PCIe slot |
| USB Ports | 2 x USB 3.0, 1 x USB 2.0, 1 x eSATA/USB 2.0 combo |
| Video Outputs | 1 x HDMI, 1 x VGA |
| Audio Ports | 1 x Headphone jack, 1 x Microphone jack |
| Card Reader | 8-in-1 Media Card Reader |
| Network Interface | 1 x RJ-45 Ethernet port |
| Wireless Support | Wi-Fi via Mini PCIe slot |
| Power Connector | Standard Dell power connector |
| Form Factor | Laptop Motherboard (Designed for Dell Inspiron 15R N5110 Series) |
| BIOS | Dell BIOS with UEFI support |
| Operating System Support | Compatible with Windows 7, 8, and 10 |

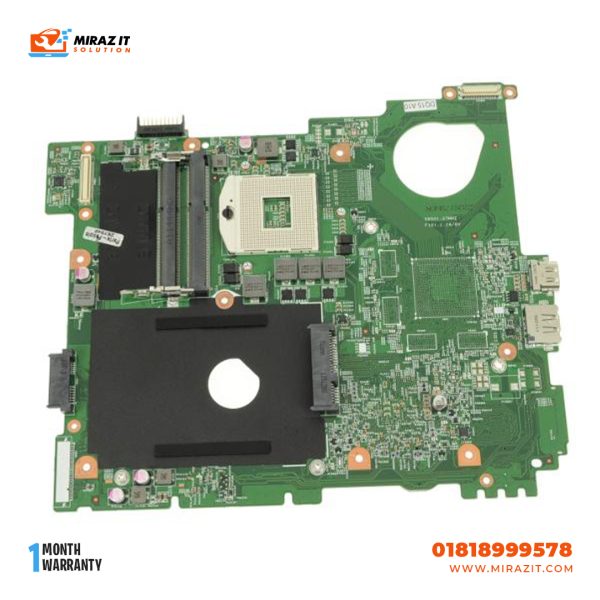

DELL n5110 Motherboard
The DELL n5110 Motherboard will be revived with the aid of the motherboard. This motherboard was designed especially for the popular Inspiron N5110 series and is built to support 2nd Generation Intel Core i3, i5, and i7 CPUs. It offers reliable performance for everyday use, work, study, and play.
With two DDR3 RAM slots and a maximum memory capacity of 8GB, it guarantees seamless multitasking and effective system performance. With integrated Intel HD Graphics 3000 or discrete NVIDIA GeForce GT 525M graphics, depending on your laptop setup, it can easily handle everyday computing and media chores.
Overall DELL n5110 Motherboard Essential networking capabilities like Ethernet, VGA, HDMI, USB 3.0, and a multi-format card reader are also included in this motherboard. SATA compatibility for SSDs and HDDs gives you a variety of alternatives for upgrading your storage. Without having to spend money on a new gadget, it’s the perfect way to replace a broken or malfunctioning board and give your laptop a new lease of life.
