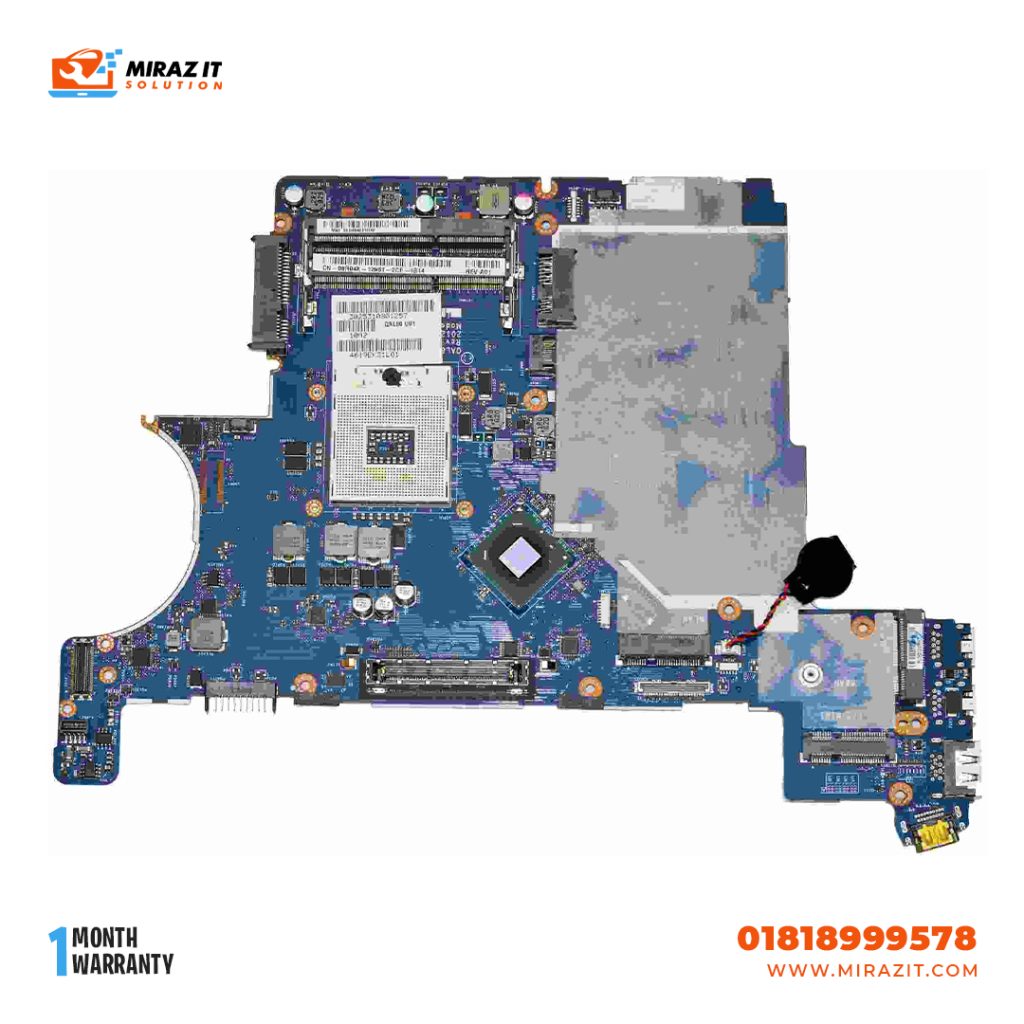

Dell latitude e6430 Laptop Motherboard Price
| Component | Specification |
|---|---|
| Motherboard Model | Dell 0CPWYR or 09YC31 (varies by configuration) |
| Chipset | Intel QM77 Express |
| CPU Support | 3rd Gen Intel Core i5/i7 (Ivy Bridge) processors; supports both BGA and rPGA988B sockets |
| Graphics | Integrated Intel HD Graphics 4000; optional NVIDIA NVS 5200M discrete GPU |
| Memory Support | Up to 16 GB DDR3 SDRAM, 1600 MHz; 2 x 204-pin SO-DIMM slots; dual-channel supported |
| Storage Interface | SATA 3.0 Gb/s for HDD/SSD; supports 2.5″ drives; includes optical drive bay |
| Expansion Slots | 1 x ExpressCard/54 slot; docking connector for Dell E-Port replicators |
| Ports | 2 x USB 3.0, 1 x USB 2.0, 1 x USB 2.0/eSATA combo, HDMI, VGA, RJ-45 Ethernet, headphone/microphone combo jack, SD card reader |
| Audio | Integrated stereo speakers and microphone; High Definition Audio compliant |
| Networking | Gigabit Ethernet; Wi-Fi 802.11a/b/g/n; Bluetooth 4.0 |
| Security Features | TPM 1.2 chip; Kensington lock slot; optional SmartCard reader |
| Form Factor | 14″ laptop chassis; magnesium alloy and anodized aluminum construction |
